DISPLAY WITH SWITCH
|
|
DISPLAY WITH SWITCH |
|
|
type: 0140.3x.xxx   |
EDP for 6, 10 and 12 measuring places | |
| mounting: | on table with cutout | |
| type: 0140.3x.xxx dimension: cutout size: |
with 6 positions DIN 144 x 72 mm 138 x 68 mm |
|
| type: 0140.Ox.xxx dimension: cutout size: |
DIN 72 x 144 mm 68 x 138 mm |
|
| type: 0142.3x.xxx dimension: cutout size: |
with 10 positions DIN 144 x 72 mm 138 x 68 mm |
|
| type: 0142.Ox.xxx dimension: cutout size: |
DIN 72 x 144 mm 68 x 138 mm |
|
| type: 0144.3x.xxx dimension: cutout size: |
with 12 positions DIN 144 x 72 mm 138 x 68 mm |
|
| type: 0144.Ox.xxx dimension: cutout size: |
DIN 72 x 144 mm 68 x 138 mm |
|

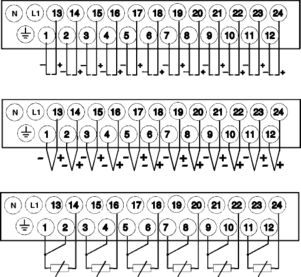

| input signal: | thermometers, J, K, R, S, RTD, Pt100, Pt1000 and standard signals | |
| display: | 3 and 1/2 digits 13 mm LED display with switch for 12 measuring places | |
| class: | 0.5% + 2 digits | |
| power supply: | 220, 110, 24 V AC and 24 V DC | |
| stand. measure areas: | Fe-CuNi (Fe-Const) : 0 - 200,
0 - 400, 0 - 600 and 0 - 900° C Ni-CrNi: 0 - 600 and 0 -1200° C Pt-RhPt: 0 - 1600 ° C Pt 100: -30.0 to +60.0, 0 - 99.9 0 - 199.9 and 0 - 400° C |
|
| current input: | 0 - 1, 0 - 20, 4 - 20 mA 0 - 100% or on special demand |
|
| voltage input: | 0 - 10, 2- 10 V 0 - 100% or on special demand |
|
| delivery: | 5 - 40 days |
